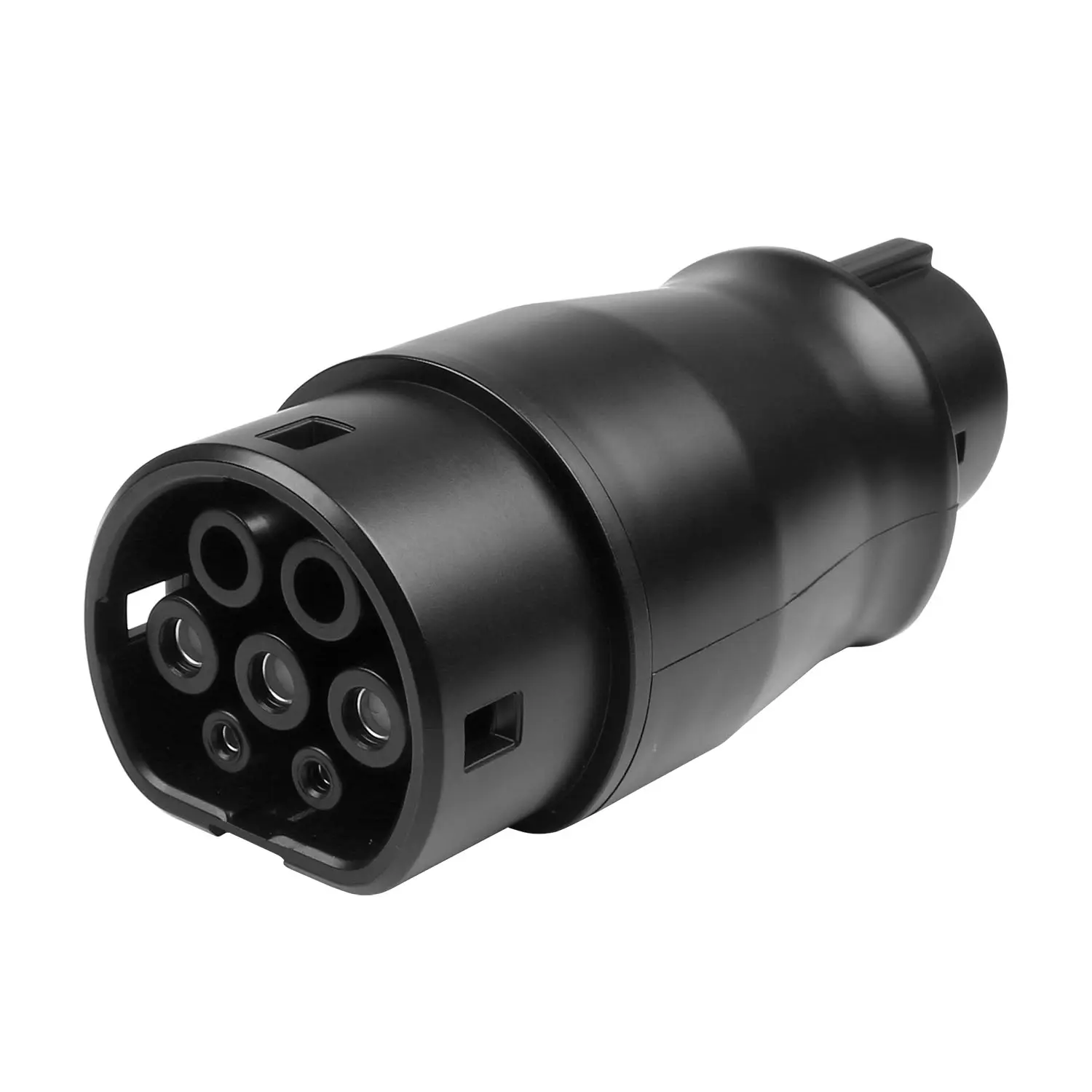

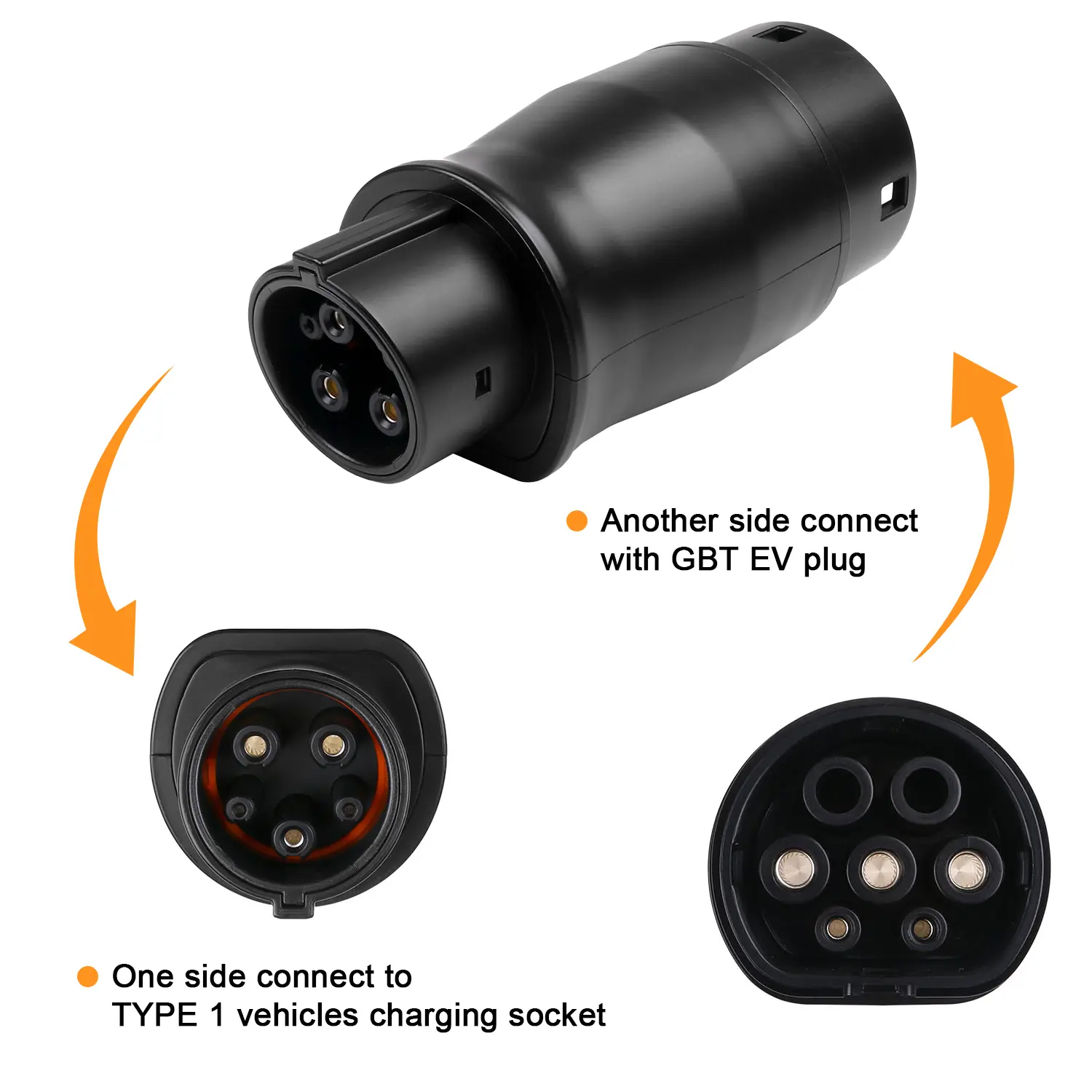

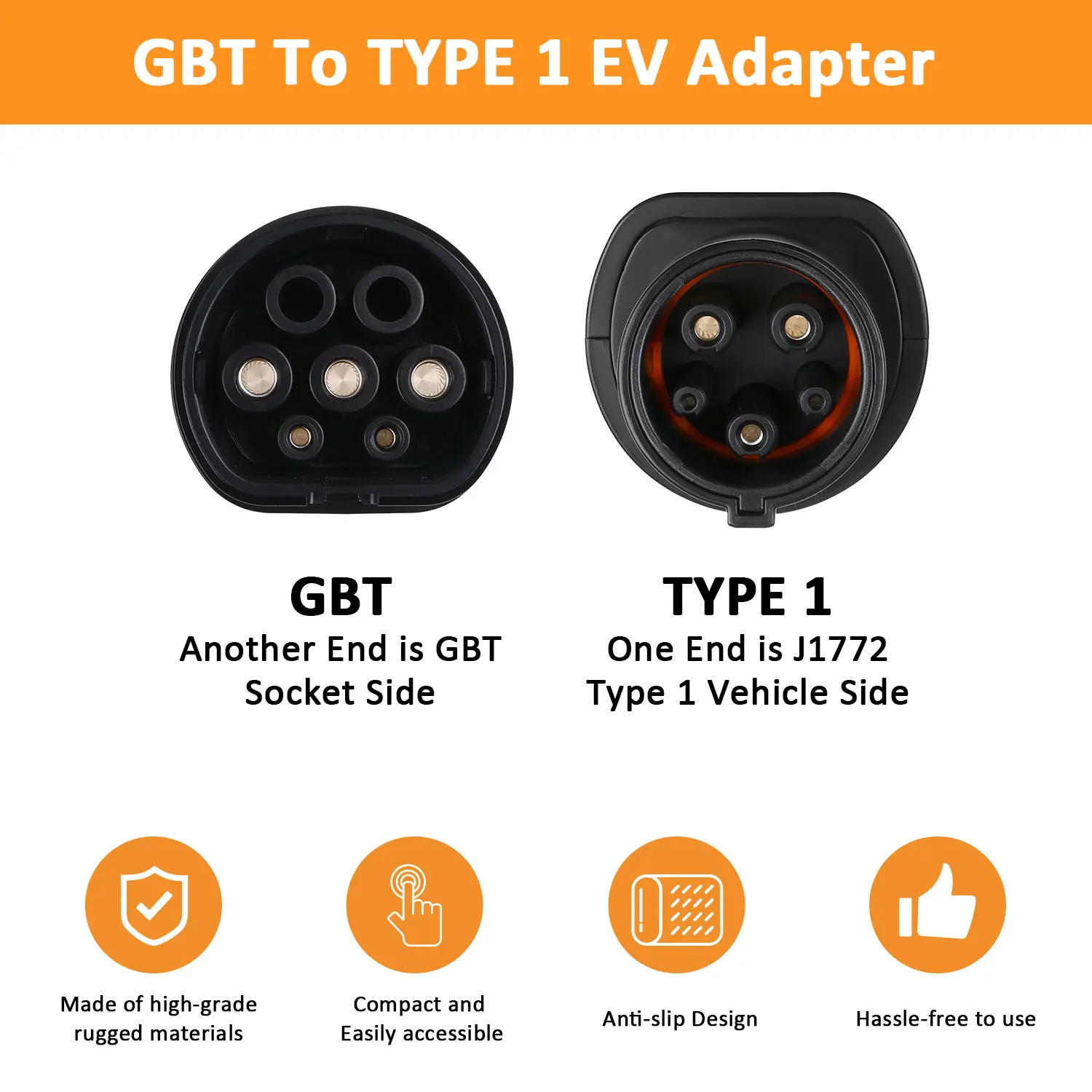

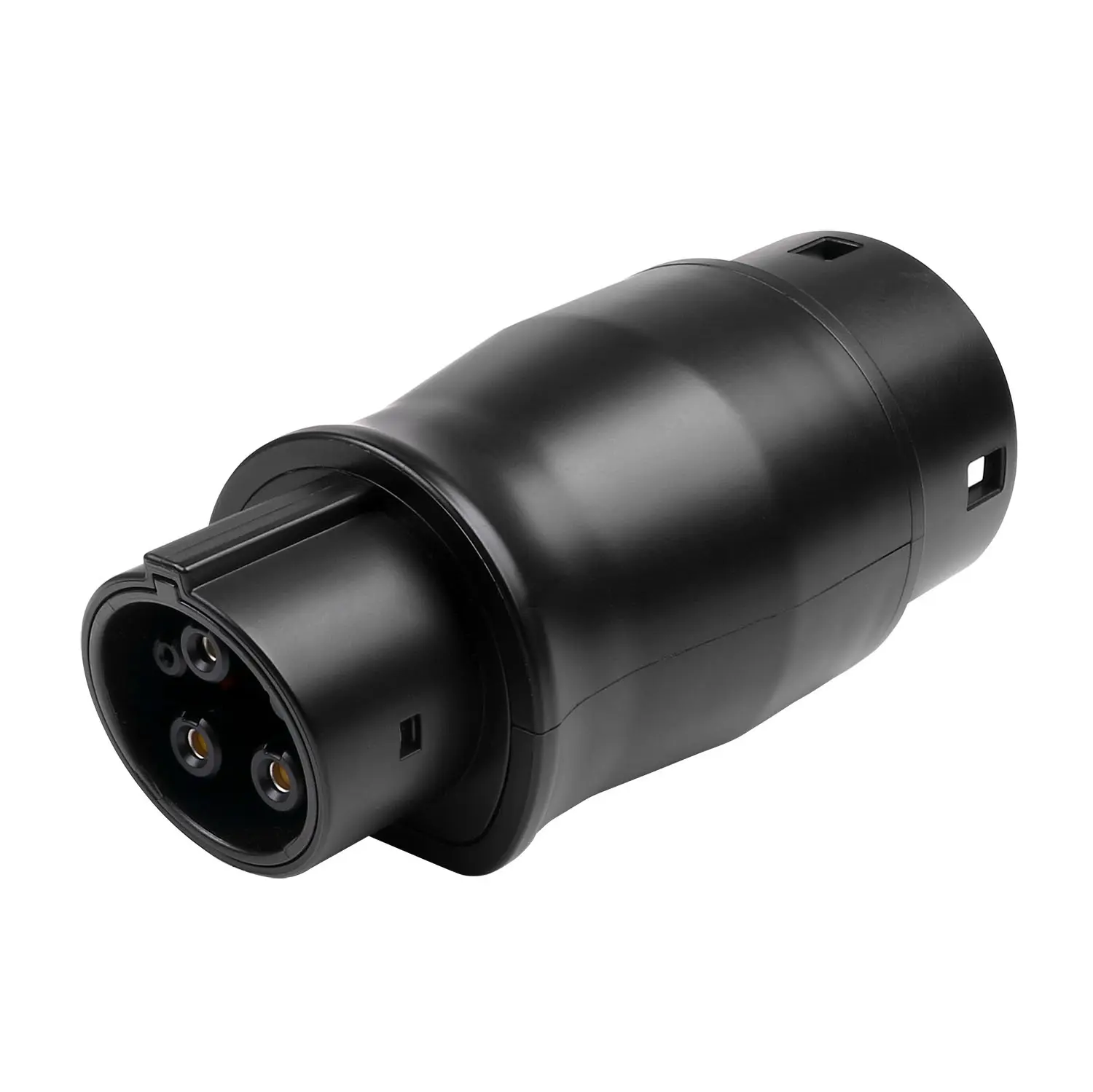

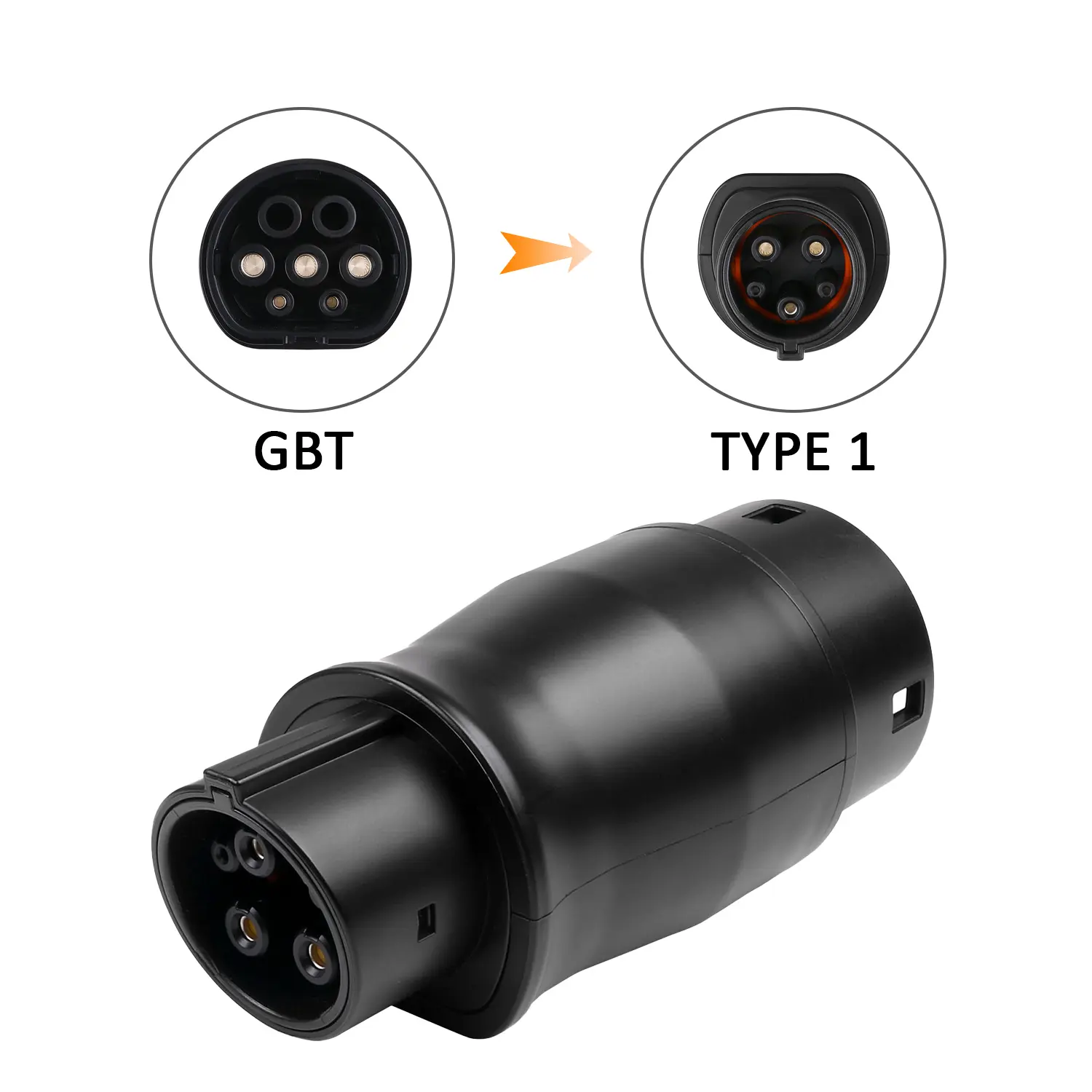

GBT TO TYPE1 Charging Adapter for American-Standard Vehicles

Key Features and Specifications

1. Rated Current: 32A
   The GBT TO TYPE1 adapter is engineered to handle a rated current of 32A, ensuring fast and reliable charging for your electric vehicle. Whether you’re charging at home or on the go, this adapter delivers consistent power to keep your EV running smoothly.

2. Rated Voltage: 110-240V, 50-60Hz
   With a wide voltage range of 110-240V and compatibility with both 50Hz and 60Hz frequencies, this adapter is versatile enough to work with various power sources. This makes it ideal for use in different environments, from residential charging stations to public charging points.

3. Insulation Resistance: >100MΩ
   Safety is a top priority when it comes to electrical devices. The GBT TO TYPE1 adapter boasts an insulation resistance of over 100MΩ, ensuring excellent electrical insulation and minimizing the risk of short circuits or electrical hazards.

4. Contact Resistance: Maximum 0.5mΩ
   The adapter features ultra-low contact resistance, with a maximum of 0.5mΩ. This ensures efficient power transfer, reducing energy loss and optimizing charging performance.

5. Terminal Temperature Rise: <50K
   During charging, the adapter’s terminal temperature rise is kept below 50K, preventing overheating and ensuring safe operation even during extended use.

6. Withstand Voltage: 2000V
   Built to withstand high voltage up to 2000V, this adapter is highly durable and capable of handling demanding charging conditions without compromising performance.

7. Mechanical Life: >10,000 Times
   The GBT TO TYPE1 adapter is designed for long-term use, with a mechanical life exceeding 10,000 insertion and extraction cycles. This ensures reliability and durability, making it a cost-effective investment for EV owners.

8. Coupling Insertion Force: 45N < F < 80N
   The adapter’s coupling insertion force is carefully calibrated to be between 45N and 80N, ensuring a secure and stable connection every time. This eliminates the risk of loose connections or interruptions during charging.

9. Operating Temperature: -30℃ to 50℃
   Whether you’re in the scorching heat of summer or the freezing cold of winter, the GBT TO TYPE1 adapter performs flawlessly. Its operating temperature range of -30℃ to 50℃ makes it suitable for use in extreme weather conditions.

10. Shell Material: Flame-Retardant Material UL94V-0
    Safety is further enhanced by the adapter’s flame-retardant shell material, which meets the UL94V-0 standard. This ensures that the adapter is resistant to fire and can withstand high temperatures without compromising its structural integrity.

11. Conductor Material: Copper Alloy Silver-Plated
    The adapter’s conductors are made from high-quality copper alloy with a silver-plated finish. This not only ensures excellent conductivity but also enhances corrosion resistance, ensuring long-lasting performance.

Why Choose the GBT TO TYPE1 Charging Adapter?

-Seamless Compatibility: Designed specifically for American-standard vehicles in China, this adapter bridges the gap between different charging standards, allowing you to charge your EV effortlessly.
-Superior Safety: With features like high insulation resistance, flame-retardant materials, and low terminal temperature rise, the GBT TO TYPE1 adapter prioritizes your safety at every step.
- Durability and Reliability: Built to last, this adapter can withstand over 10,000 cycles and operates reliably in extreme temperatures, making it a dependable choice for EV owners.
- Efficient Charging: The low contact resistance and high conductivity ensure minimal energy loss, providing faster and more efficient charging for your vehicle.
- Versatility: Its wide voltage range and compatibility with different frequencies make it suitable for various charging environments, from home setups to public stations.

Who Is This Product For?

The GBT TO TYPE1 Charging Adapter is perfect for:
- Expatriates and Travelers: If you’re an American EV owner living in or visiting China, this adapter ensures you can charge your vehicle without any compatibility issues.
- EV Enthusiasts: For those who value high-quality, reliable, and safe charging solutions, this adapter is a must-have accessory.
- Fleet Operators: Businesses with American-standard EVs operating in China can benefit from the adapter’s durability and efficiency, ensuring uninterrupted operations.

Conclusion

The GBT TO TYPE1 Charging Adapter is more than just a connector; it’s a gateway to hassle-free EV charging in China. With its robust design, advanced safety features, and exceptional performance, this adapter is the ideal solution for American-standard EV owners looking to charge their vehicles efficiently and safely. Don’t let charging compatibility issues slow you down—invest in the GBT TO TYPE1 Charging Adapter today and experience the convenience and reliability it brings to your EV lifestyle.

Order now and power up your journey with confidence!
