How to Choose the Right Charging Cable for Your EV: A Complete Guide

1. Why Do You Need a Charging Cable?

Unlike traditional gasoline-powered vehicles, EVs rely on electricity for power. To charge an EV, you need to connect it to a charging station using a compatible cable. In some cases, charging stations have **tethered cables** (permanently attached to the charger), but in many instances, **you must bring your own charging cable**.

Here are some scenarios where a charging cable is necessary:

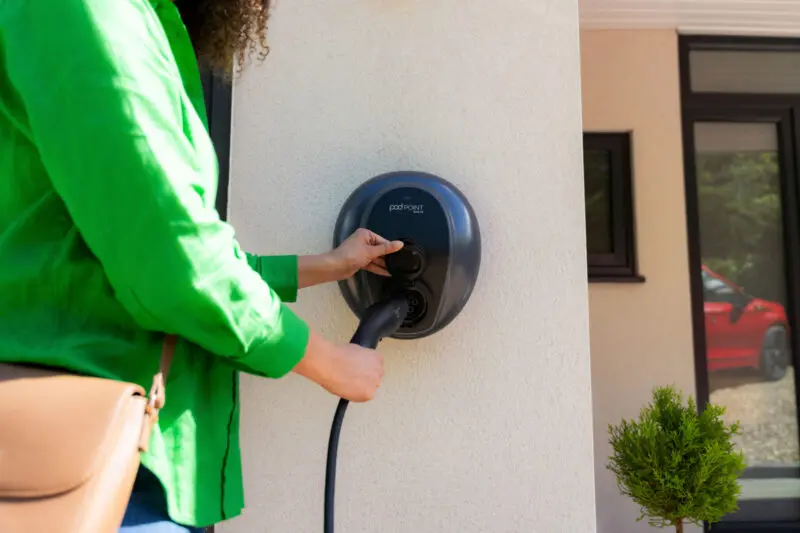

- **Home Charging**: If your home charger does not have a built-in (tethered) cable, you will need to use your own cable.
- **Workplace Charging**: Many companies provide EV charging stations that require employees to use their own cables.
- **Public Charging**: The majority of **public AC chargers** require EV drivers to bring their own charging cable.
- **Rapid Charging Stations**: These usually have tethered cables, meaning you don’t need to bring your own. However, for slower AC chargers, an additional cable may still be required.

Choosing the right charging cable ensures **faster charging, enhanced safety, and compatibility with different charging stations**.

2. Understanding EV Charging Cable Types

EV charging cables vary in terms of **connector type, current rating, and phase compatibility**. Let’s break down these factors.

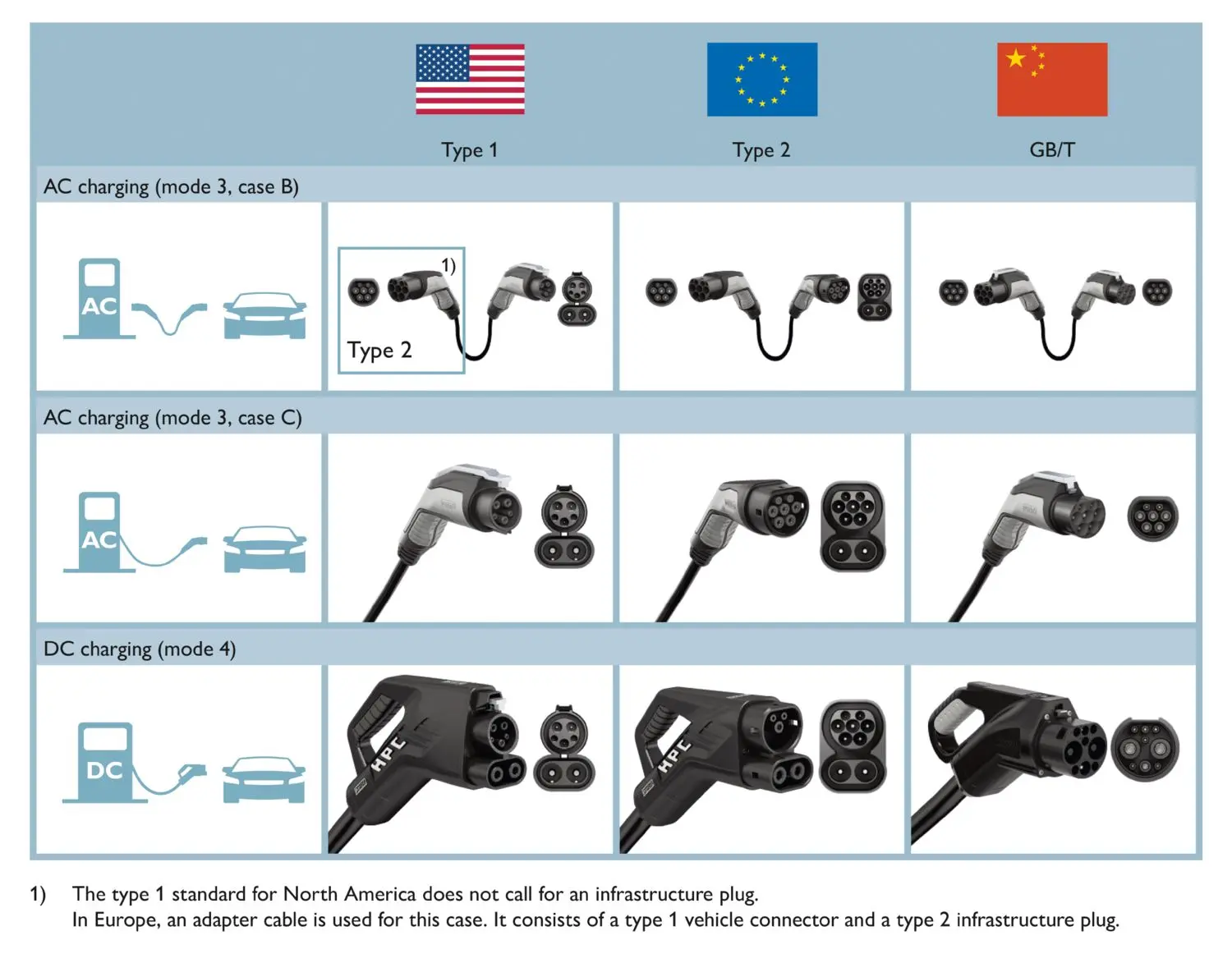

2.1. EV Connector Types: Type 1 vs. Type 2

The first step in choosing a charging cable is understanding your vehicle’s charging socket. EVs come with either a **Type 1** or **Type 2 AC socket**:

- **Type 1 (J1772)**: Primarily used in North America and some parts of Asia. It has a 5-pin design and supports single-phase charging.
- **Type 2 (Mennekes)**: The standard in Europe and most modern EVs. It has a 7-pin design and supports both **single-phase and three-phase charging**, allowing for higher charging speeds.

To charge your EV, your charging cable must have a connector that matches your car's socket.

2.2. Single-Phase vs. Three-Phase Charging Cables

EV charging cables are available in **single-phase** and **three-phase** versions, which impact charging speed:

- **Single-Phase (3.7kW to 7.4kW)**: Suitable for most home chargers and slower public charging points.
- **Three-Phase (11kW to 22kW)**: Provides **faster charging speeds** and is commonly used at workplace and public charging stations. However, **not all EVs support three-phase charging**, so check your vehicle’s specifications before purchasing a three-phase cable.

2.3. Current Rating: 16A vs. 32A

Charging cables also come with different current ratings, affecting charging speed:

- **16A Cables**: Typically support up to **3.7kW (single-phase) or 11kW (three-phase)** charging.
- **32A Cables**: Allow for **7.4kW (single-phase) or 22kW (three-phase)** charging, which significantly reduces charging time.

If your EV supports higher charging speeds, choosing a **32A cable is recommended for future-proofing**.

3. Key Factors to Consider When Buying an EV Charging Cable

When selecting an EV charging cable, consider the following aspects:

3.1. Cable Length

Charging cables are available in different lengths, usually ranging from **2 meters to 10 meters**.

- **Short cables (2m - 3m)**: Compact and easy to store, but may not be convenient in certain parking setups.
- **Standard cables (5m - 7m)**: Ideal for most home and public charging situations.
- **Long cables (8m - 10m)**: Useful if the charging station is far from your vehicle, but they can be bulkier and harder to store.

3.2. Weather Resistance

Since many charging stations are outdoors, it’s important to choose a cable that is **waterproof and dustproof**. Look for **IP54 or higher-rated cables** to ensure durability in different weather conditions.

3.3. Safety and Certification

To guarantee safety and performance, always choose a charging cable that complies with international standards such as:

- **IEC 61851-1** (global safety standard for EV charging cables)
- **CE Certification** (European safety compliance)
- **TÜV Certification** (German safety standard)

Certified cables offer **built-in safety features** such as overcurrent protection, heat resistance, and surge protection.

3.4. Portability and Storage

If you frequently use public charging stations, consider a **lightweight and flexible** cable that is easy to store in your car. Many manufacturers offer storage bags to keep cables **organized and tangle-free**.

4. Market Trends and Future Outlook

With the rapid growth of EV adoption, the demand for **high-quality EV charging cables** is increasing. Here are some notable trends:

4.1. Smart Charging Cables

Newer cables are incorporating **smart features** such as:
- **Built-in energy monitoring** to track electricity usage
- **App-controlled charging** for scheduling and remote monitoring
- **Over-the-air updates** for improved performance

4.2. Increasing Use of Type 2 Connectors

Many automakers are transitioning to **Type 2** as the standard connector due to its **faster charging capabilities and better compatibility** with public infrastructure.

4.3. Growth of Three-Phase Charging

As **charging networks expand**, more locations are offering **11kW or 22kW three-phase chargers**, making three-phase cables a smart long-term investment.

5. Conclusion: Choosing the Best EV Charging Cable

A **reliable EV charging cable** is essential for convenient and safe charging at home, work, and public stations. When selecting a cable, consider:

✔ **Type 1 or Type 2 Connector**: Match it with your vehicle’s charging socket.
✔ **Single-Phase or Three-Phase**: Choose based on your charging needs and vehicle capabilities.
✔ **16A or 32A Rating**: Higher amperage allows for **faster charging**.
✔ **Cable Length**: Ensure it is long enough for **flexibility and convenience**.
✔ **Weatherproof & Certified**: Choose a **durable, waterproof, and safety-certified** cable.

Investing in the right charging cable **ensures a seamless charging experience** while maximizing efficiency and safety. With the increasing adoption of electric vehicles, choosing a **future-proof cable** will enhance your EV journey for years to come.
